Weber Carb 34ADM Master Thread

Recommended Posts

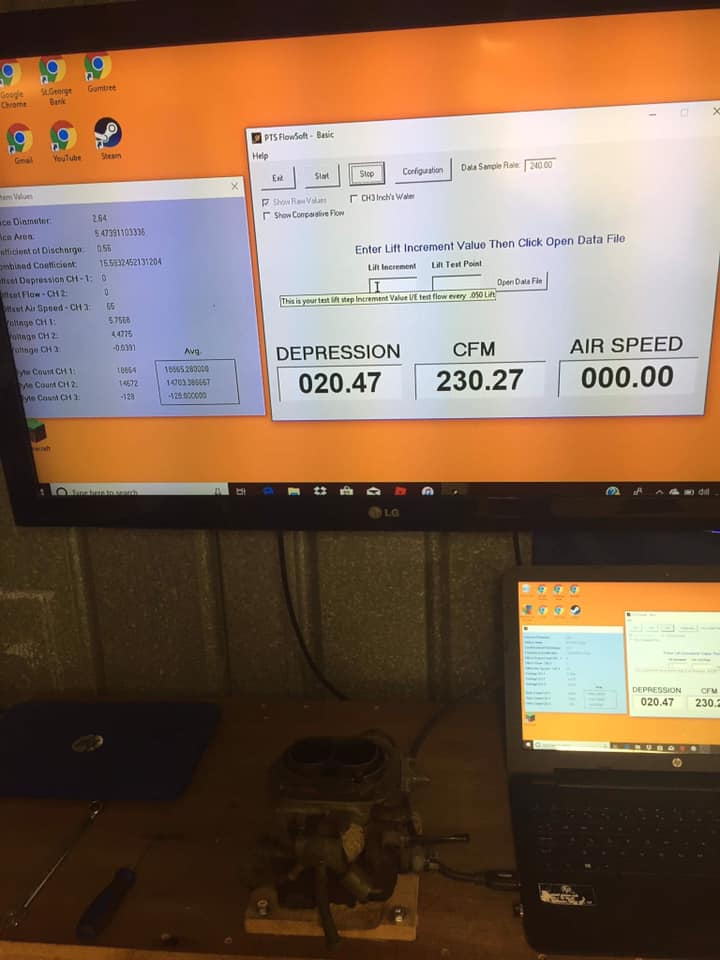

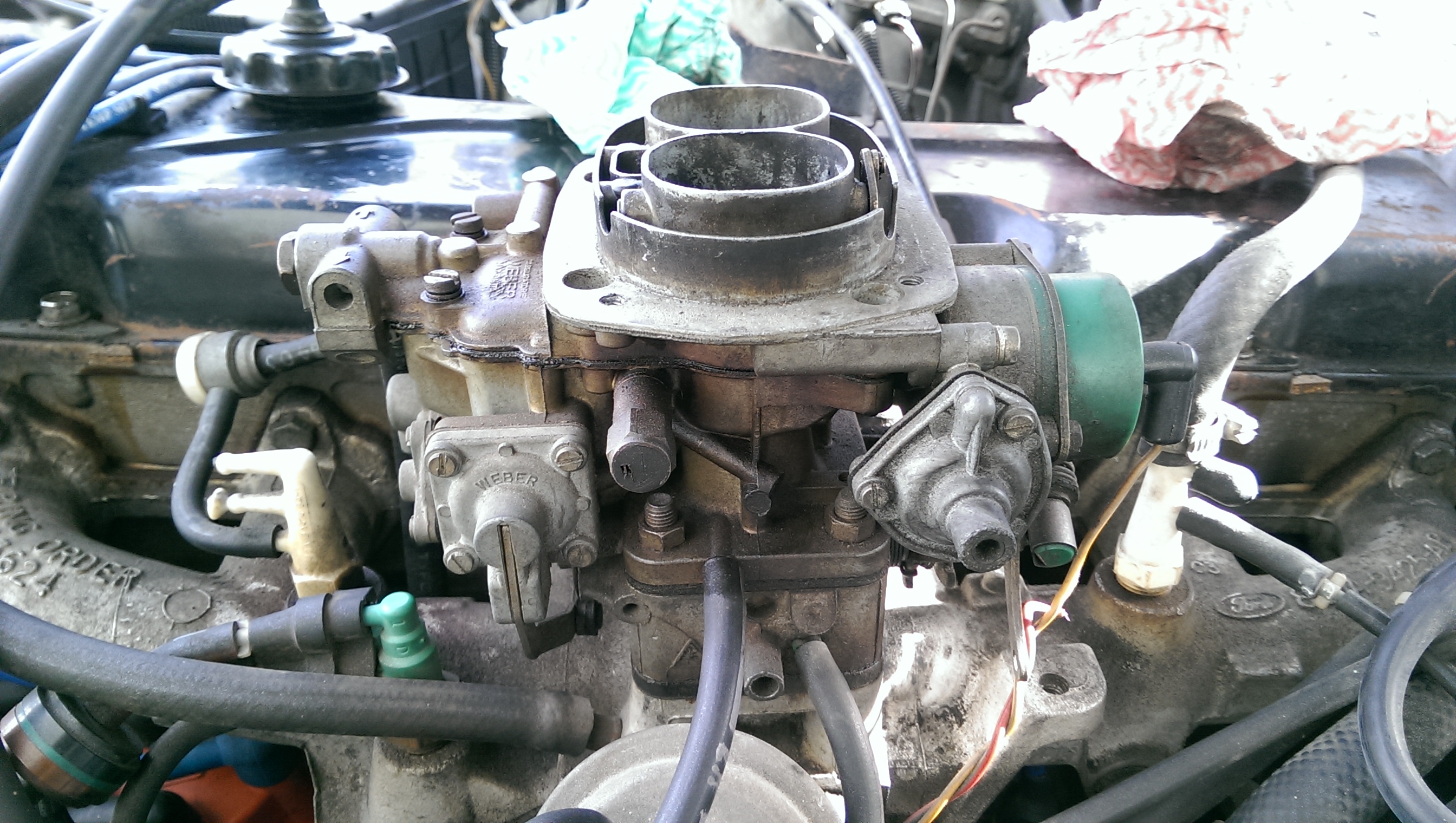

The Italian made Weber 34adm Carburettor, was factory fitted to XE/XF Falcon 6cyl, Ford F100-350's and Ford Bronco 6cyl.

It existed as factory fitment, from mid 1982, up till March 1993 - when the XF Falcon commercial range ended, and the XG Falcon was launched.



The purpose of this thread, is to have Technical and Parts info for the Weber 34adm Carburettor, all in one location.

I will edit and add to this first post, as I find further info.



If anyone has any additional info on these carby's, they're most welcome to add it into the thread.

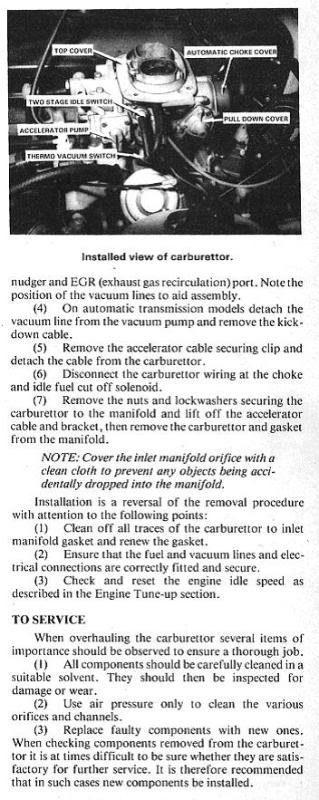

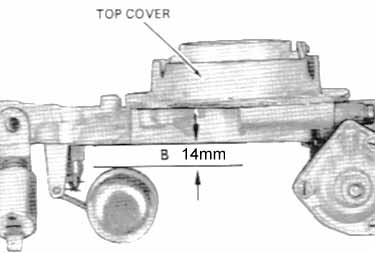

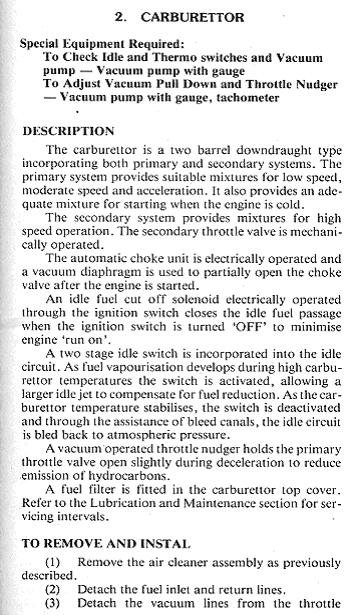

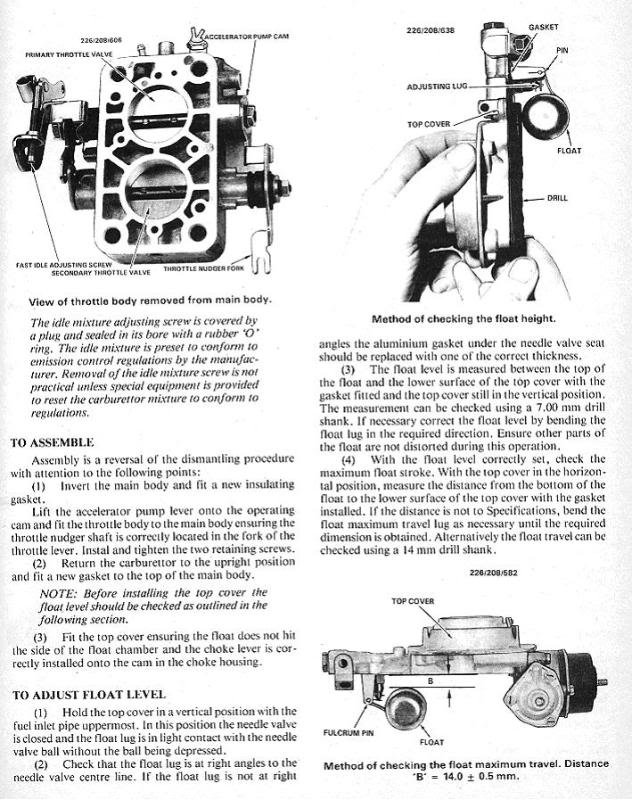

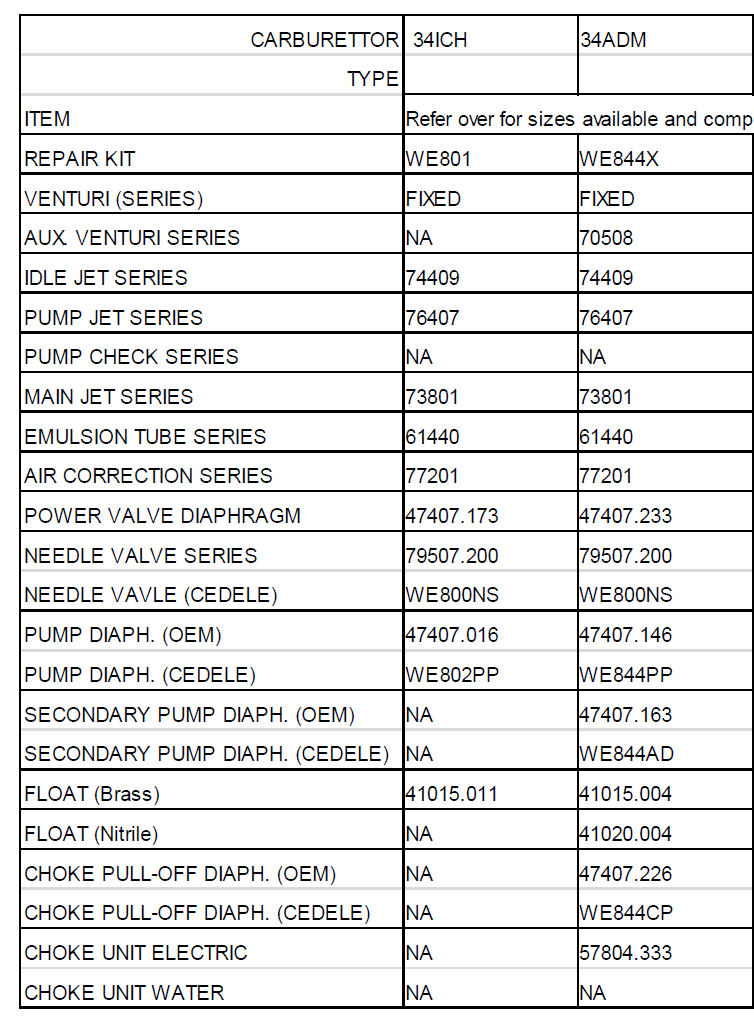

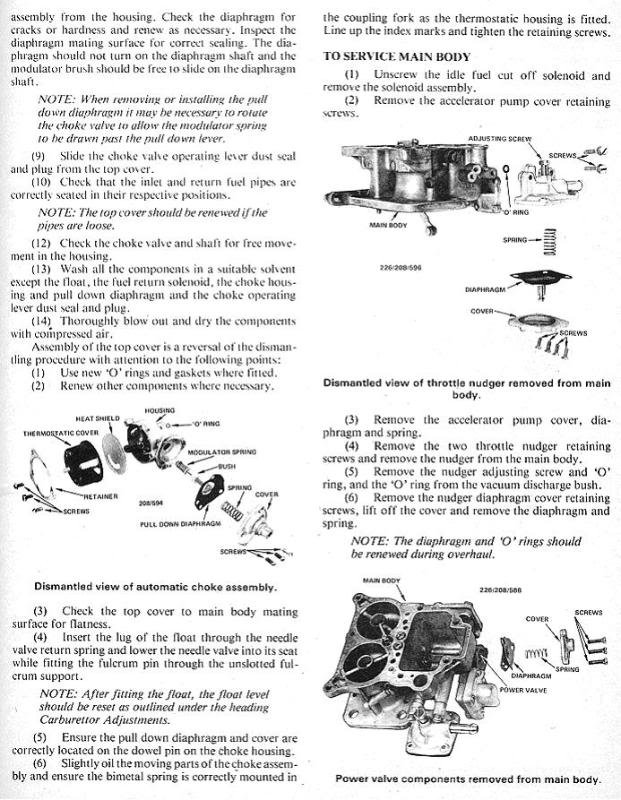

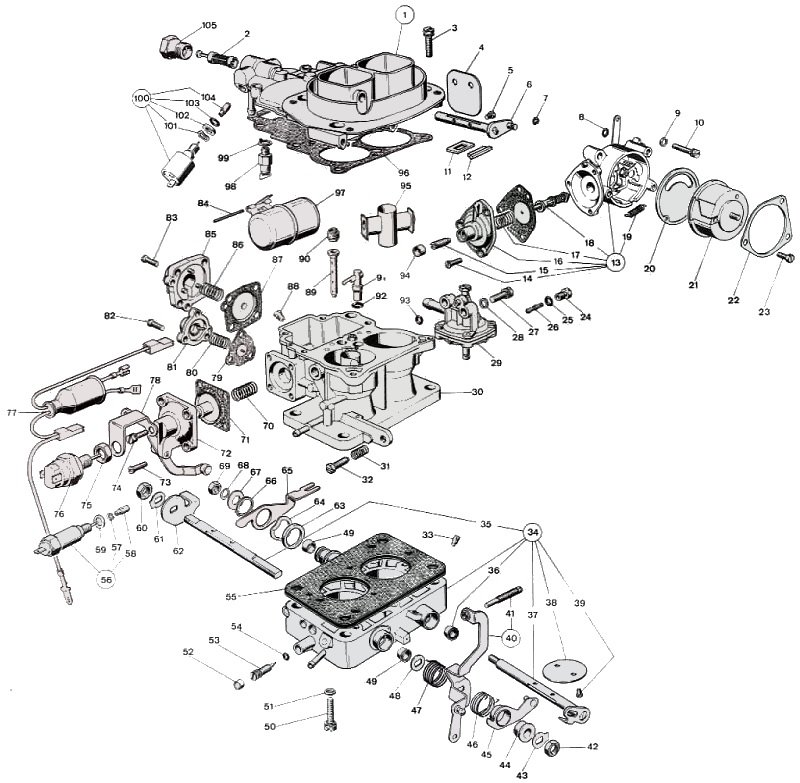

WEBER 34ADM 1 Parts Diagram 1a.png

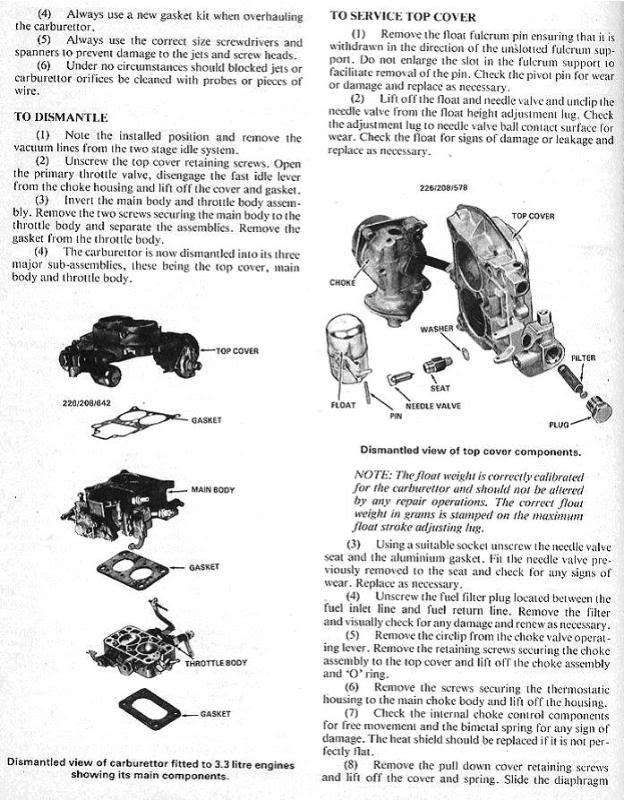

WEBER 34ADM 1 Parts Diagram 2.png

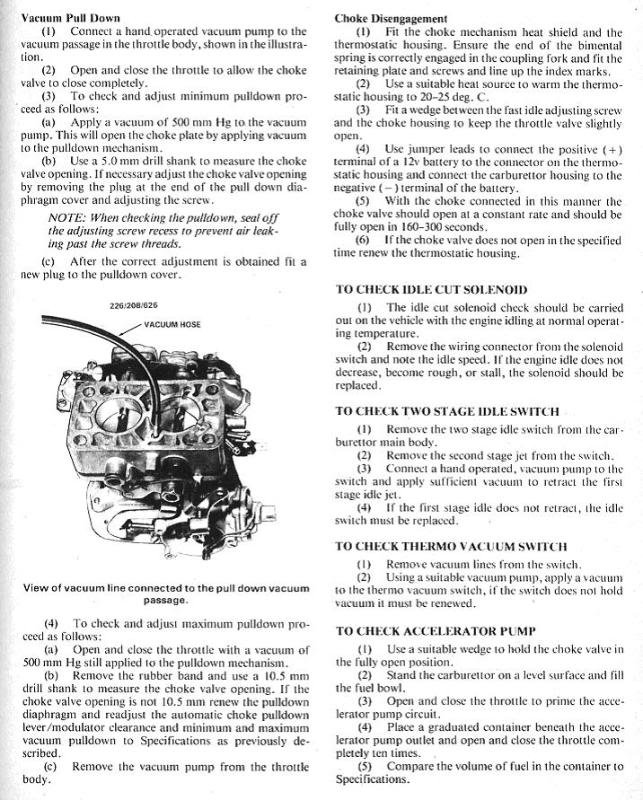

WEBER 34ADM 1 Parts Diagram 3.png

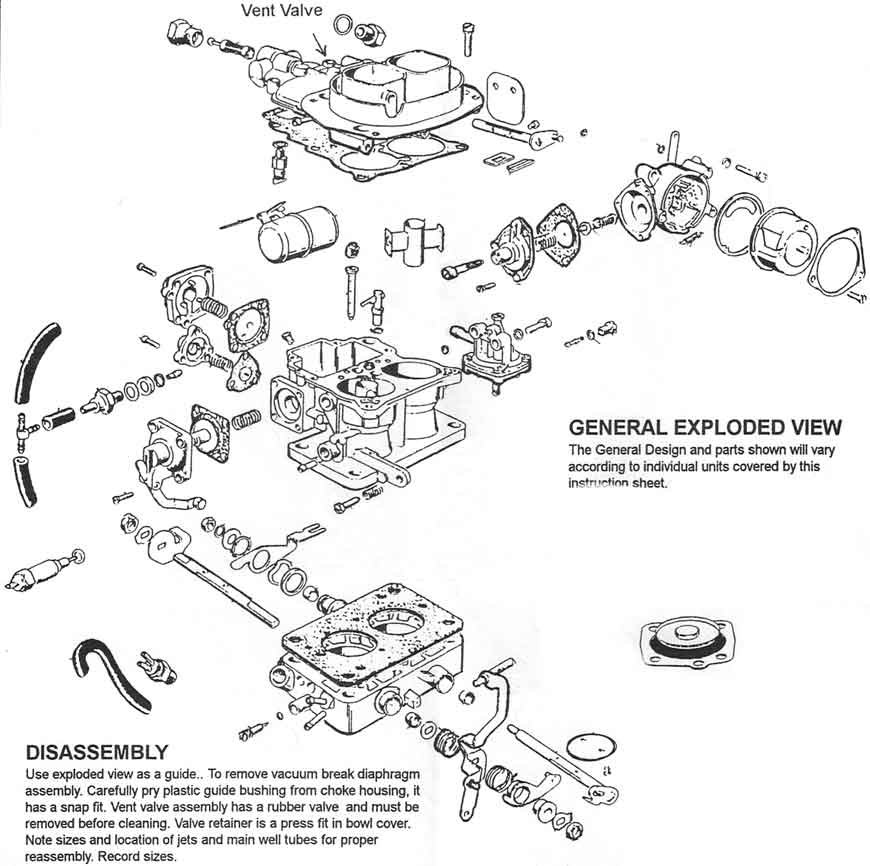

Exploded_view_of_WEBER_34_ADM_0_USD.pdf

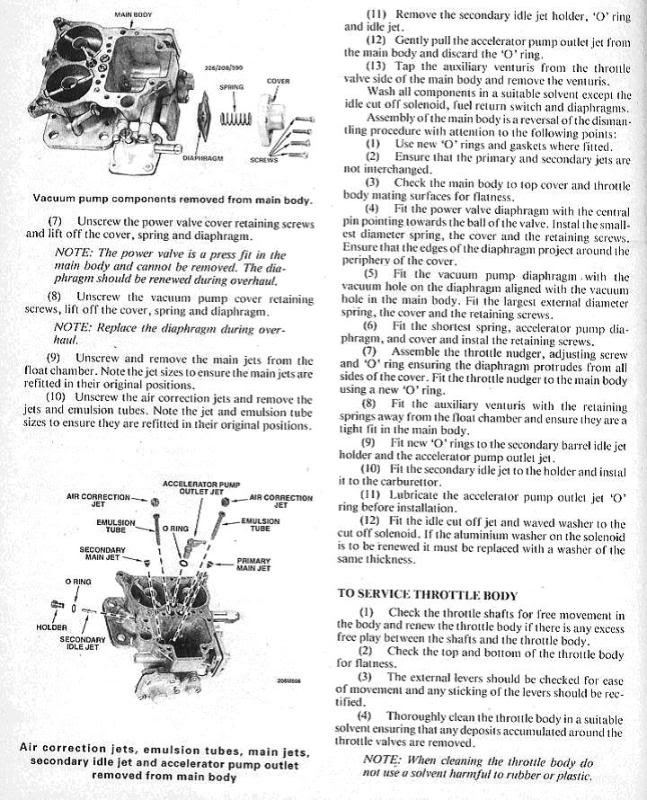

Weber 34adm parts diagram 1a.jpg

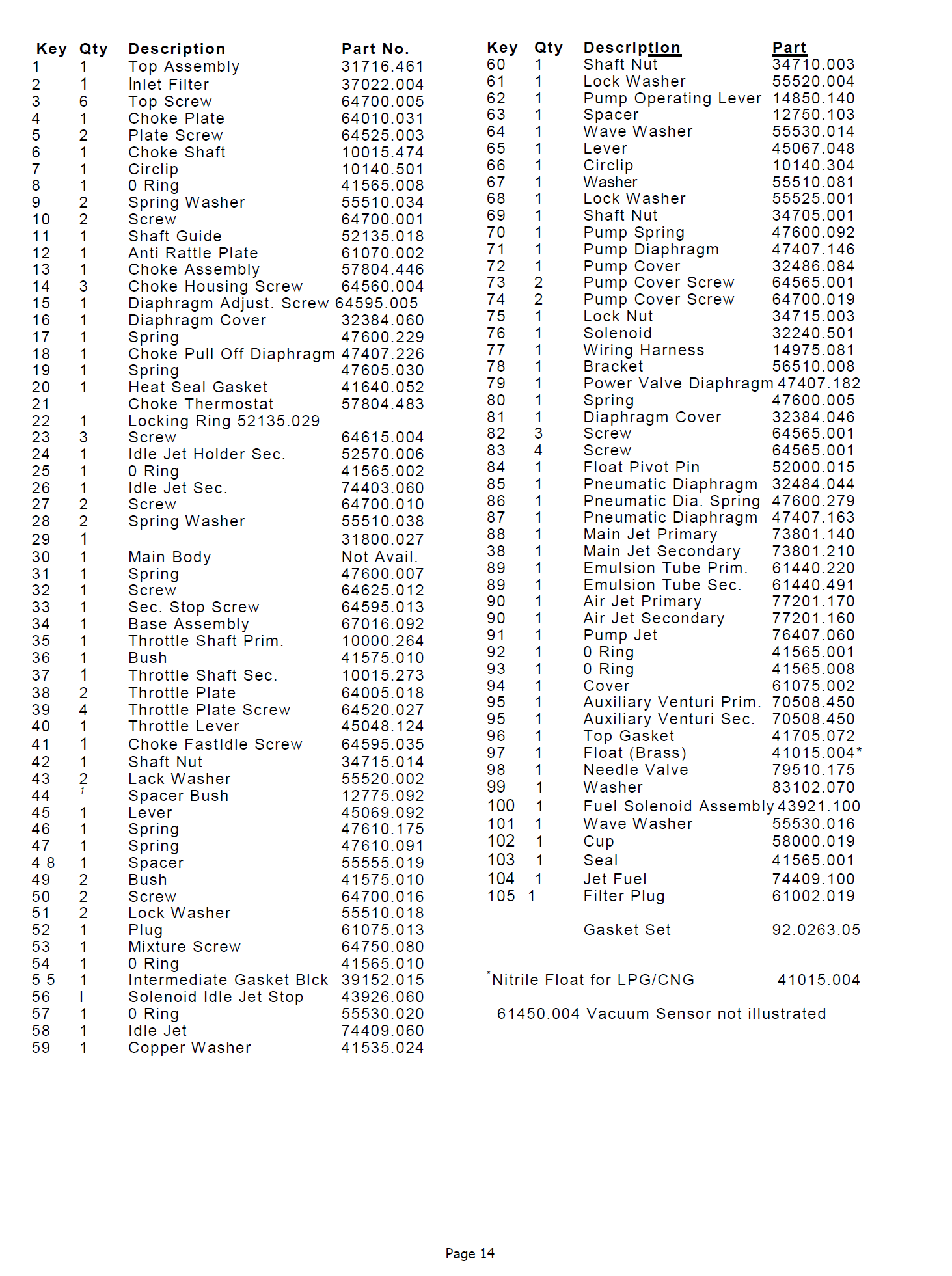

List of parts:

No Part No Price Pcs Description
1 31716.461 $ 0 1 Carb Top Cover
2 37022.004 $ 10.3 1 Filter element
3 64700.005 $ 0 6 Top Cover Fixing Screw
4 64010.034 $ 0 1 Choke throttle valve
5 64525.003 $ 0 2 Choke plate fixing screw
6 10015.274 $ 7.8 1 Choke shaft
7 10140.501 $ 1 1 Locking Ring
8 41565.008 $ 0.8 1 O ring
9 55510.034 $ 0.4 2 Lock Washer
10 64700.001 $ 5 2 Fixing Screw
11 52135.018 $ 3 1 Dust seal plate
12 61070.002 $ 3 1 Dust seal plug
13 57804.446 $ 0 1 Auto Choke Assy. Including
14 64560.004 $ 0 3 — Diaphragm cover fixing screw
15 64595.005 $ 5.8 1 — Diaphragm adjusting screw
16 32384.060 $ 0 1 — Diaphragm cover
17 47600.229 $ 0 1 — Diaphragm loading spring
18 47407.226 $ 0 1 — Choke diaphragm
19 47605.030 $ 0 1 - Return Spring
20 41640.052 $ 3 1 Auto Choke Body Gasket
21 57804.483 $ 0 1 Autochoke Thermostat
22 52135.029 $ 2.4 1 Choke Lock Ring
23 64615.004 $ 0 3 Screw
24 52570.006 $ 6.5 1 Idling jet holder
25 41565.002 $ 0.4 1 Idle jet holder O Ring seal
26 74403.060 $ 3 1 Secondary idle jet
27 64700.010 $ 0 2 Fixing Screw
28 55510.038 $ 0 2 Lock Washer
29 31800.027 $ 0 1 Capsula minimo accelerato
30 - $ 0 1 Carburetor Body
31 47600.007 $ 2.3 1 Idle Screw Spring
32 64625.012 $ 6.5 1 Throttle Adjustment Screw
33 64595.013 $ 0 1 Secondary throttle adjusting screw
34 67016.092 $ 0 1 Carburettor shaft base. including:
35 10000.264 $ 0 1 Primary Throttle Shaft
36 41575.010 $ 3.2 1 Bushing
37 10015.273 $ 0 1 Secondary Throttle Shaft
38 64005.113 $ 0 2 — Throttle valve
39 64520.027 $ 0.6 4 Throttle plate screw
40 45048.124 $ 0 1 Throttle control lever
41 64595.035 $ 0 1 Throttles adjusting screw
42 34715.014 $ 1 1 Throttle Spindle Nut
43 55520.002 $ 1 1 Shaft Lock Tab
44 12775.092 $ 0 1 Boccola guida leva allentata
45 45069.092 $ 0 1 Lever
46 47610.175 $ 0 1 Molla leva allentata
47 47610.091 $ 0 1 Choke lever return spring
48 55555.019 $ 0.9 1 Shaft Spacer
49 41575.010 $ 3.2 2 Bushing
50 64700.016 $ 0 2 Fixing Screw
51 55510.018 $ 0 2 Lock Washer
52 61075.013 $ 4 1 Idle mixture tamper proof plug
53 64750.080 $ 0 1 Idle Mixture Screw
54 41565.010 $ 0 1 Idle Mixture Screw O Ring
55 39152.015 $ 0 1 Base Spacer Heat Gasket
56 43914.060 $ 0 1 Idle Cut Off Solenoid
57 55530.020 $ 0 1 — Rosetta ondulata
58 74409.060 $ 3 1 — Idle jet
59 41535.024 $ 0 1 Guarnizione Intercettatore minimo
60 34710.003 $ 1 1 Throttle Shaft Nut
61 55520.004 $ 1 1 Throttle Shaft Lock Washer
62 14850.140 $ 0 1 Pump Cam
63 12750.103 $ 0 1 Boccola distanziale leva allentata
64 55530.014 $ 0 1 Rosetta ondulata leva allentata minimo accel.
65 45067.048 $ 0 1 Leva allentata comando mimmo accelerato
66 10140.304 $ 0 1 Anello elastico ritegno leva allentata
67 55510.081 $ 1.2 1 Washer For Shaft
68 55525.001 $ 0 1 Spring Washer
69 34705.001 $ 0.8 1 Secondary shaft fixing nut
70 47600.092 $ 0 1 Pump Spring
71 47407.146 $ 0 1 Pump diaphragm
72 32486.084 $ 0 1 Accelerator Pump Cover
73 64565.001 $ 0 2 Screw
74 64700.019 $ 0 2 Pump Cover Screw
75 34715.003 $ 0 1 Nut
76 32240.501 $ 0 1 Interruttore unipolare
77 14975.081 $ 0 1 Cavo unipolare
78 58510.008 $ 0 1 Staffa interruttore
79 47407.182 $ 0 1 Membrana valvola piena potenza
80 47600.005 $ 3.5 1 Starter Valve Spring
81 32384.046 $ 0 1 Coperchio valvola piena potenza
82 64565.001 $ 0 3 Screw
83 64565.001 $ 0 4 Screw
84 52000.015 $ 1.1 1 Float pivot
85 32484.044 $ 0 1 Coperchio pompa pneumatica
86 47600.279 $ 0 1 Spring For Diaphragm
87 47407.163 $ 0 1 Membrana pompa pneumatica
88 73801.210 $ 3.7 1 Main jet
88 73801.140 $ 3 1 Main jet
89 61440.220 $ 9 1 Primary Emulsion Tube
89 61440.491 $ 0 1 Secondary Emulsion Tube
90 77201.160 $ 3 1 Secondary air correction jet
90 77201.170 $ 3 1 Primary Air Corrector Jet
91 76407.060 $ 13 1 Pump jet
92 41565.001 $ 0 1 Pump Jet ´O´ Ring
93 41565.008 $ 0.8 1 O ring
94 61075.002 $ 0 1 Tappo coperchio sgolfatore
95 70508.450 $ 0 1 Auxiliary Venturi Secondary
95 70508.450 $ 0 1 Auxiliary Venturi Primary
96 41705.072 $ 0 1 Top Cover Gasket
97 41015.004 $ 33.2 1 Float
98 79510.175 $ 0 1 Needle & Seat
99 83102.070 $ 1 1 Gasket for Needle Valve
100 43921.100 $ 0 1 Intercettatore ricircolo completo di:
101 55530.016 $ 0 1 — Wavy Washer
102 58000.019 $ 0 1 — Cup Washer
103 41565.001 $ 0 1 — Idle jet holder O Ring seal
104 74409.100 $ 3 1 — Idle jet
105 61002.019 $ 0 1 Fuel Filter Cover

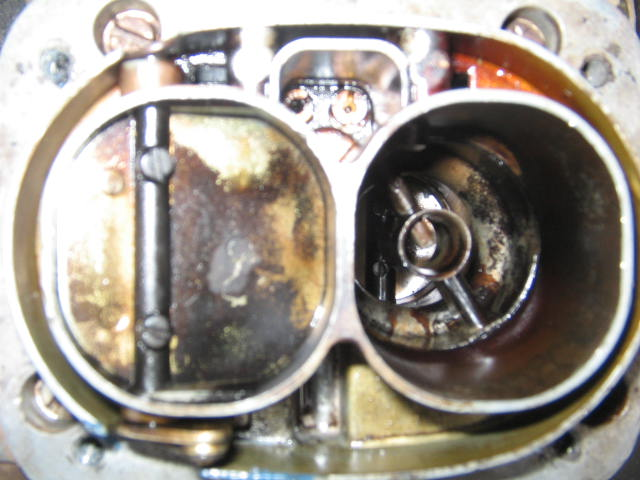

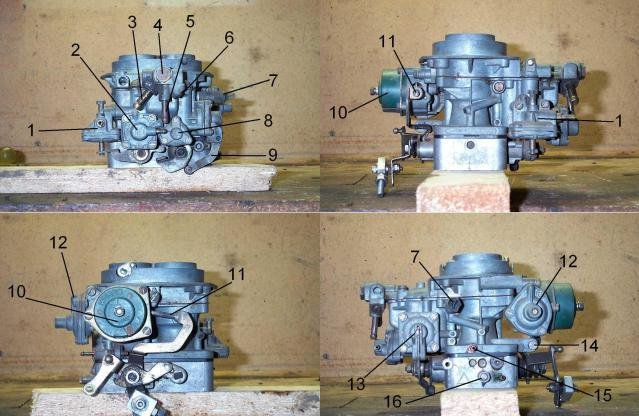

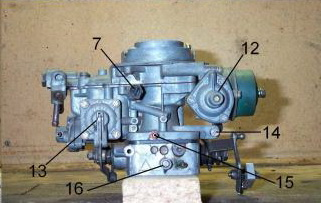

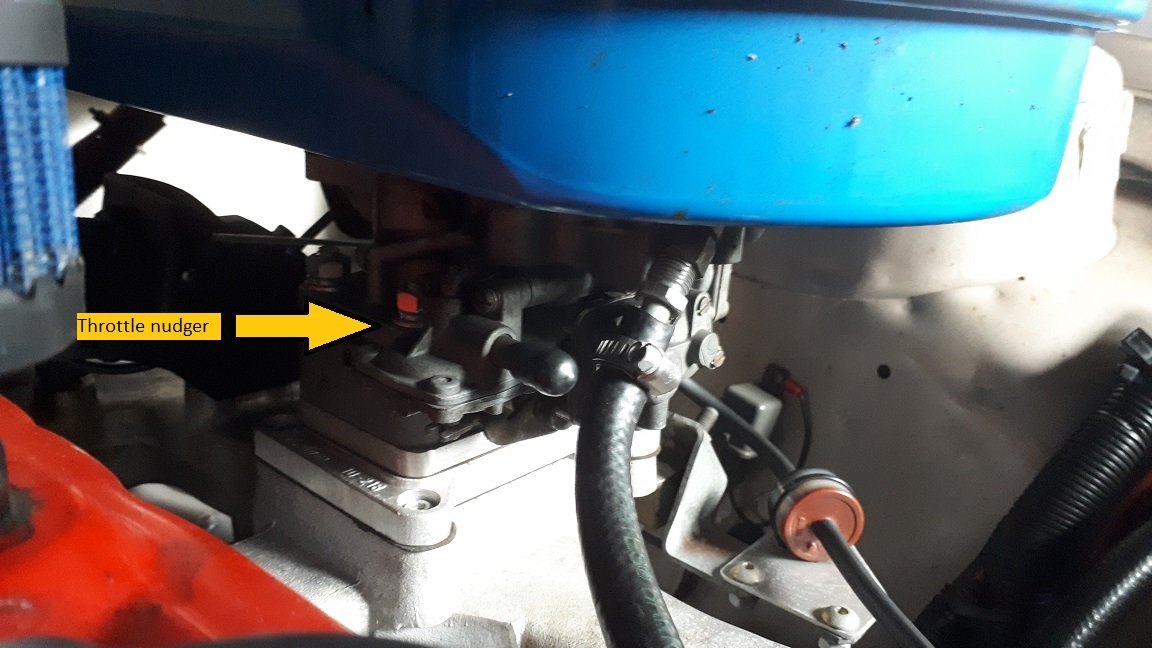

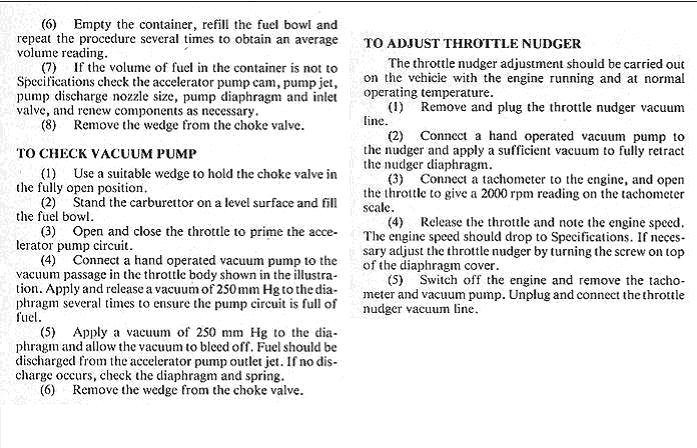

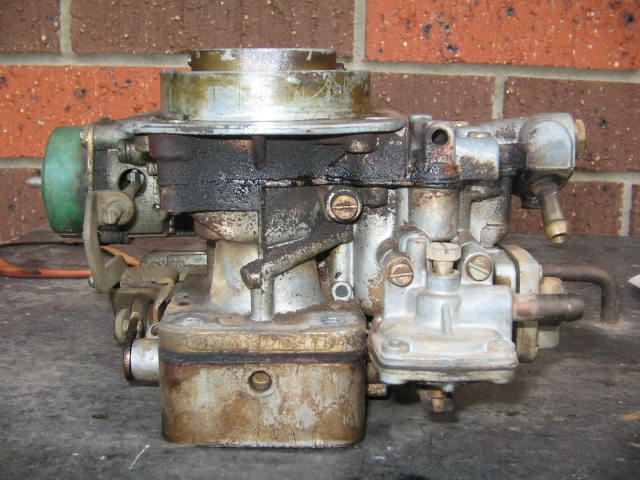

1. Throttle nudger: On the XE/XF Falcons this is used to hold the throttle open slightly during an overrun condition by applying vacuum at the hose fitting. The screw in the top sets how much the throttle is held open.

2. Accelerator pump accumulator: Receives the fuel charge from the accelerator pump and controls the discharge rate of the fuel into the air stream.

3. Fuel inlet fitting.

4. Fuel filter plug. There is a small plastic filter under this plug.

5. Fuel return. On some models this is used to return fuel to the fuel tank when item 6 (below) is fitted.

6. Fuel return solenoid fitting. On some models there is a solenoid screwed into this fitting that energises when the throttle is closed, allowing fuel to return to the tank when at idle.

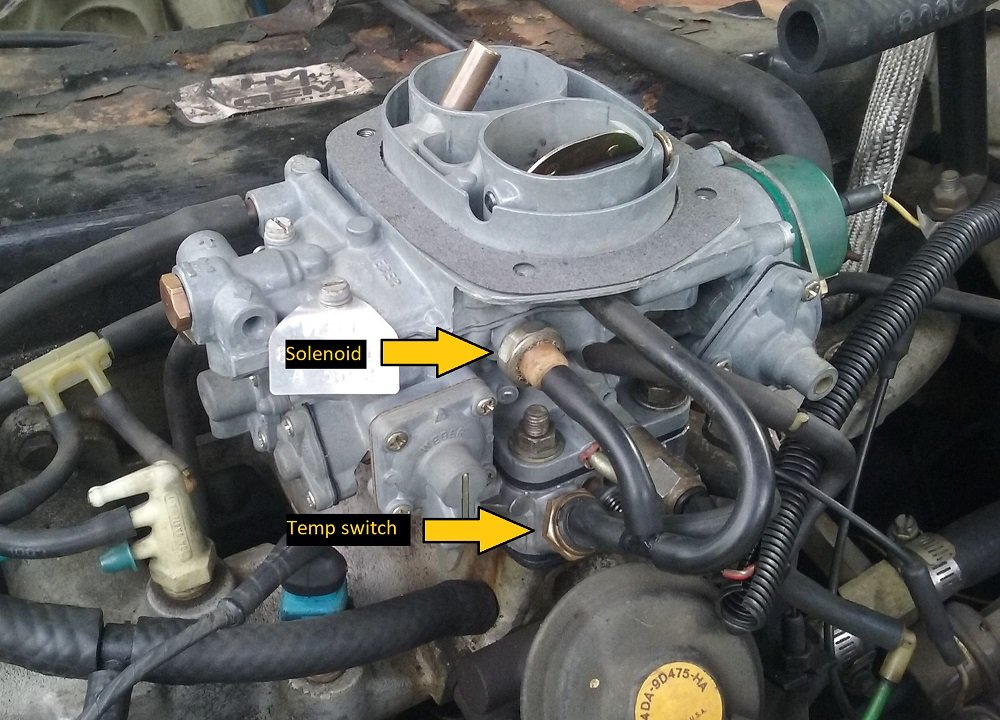

7. Idle solenoid. Allows fuel to flow in the idle circuit when this solenoid is energised. +12 Volts must be applied to this solenoid when the ignition is switched on.

8. Power bypass circuit actuator diaphragm. Allows fuel to flow in the power bypass circuit when low manifold vacuum is sensed.

9. Accelerator pump lever.

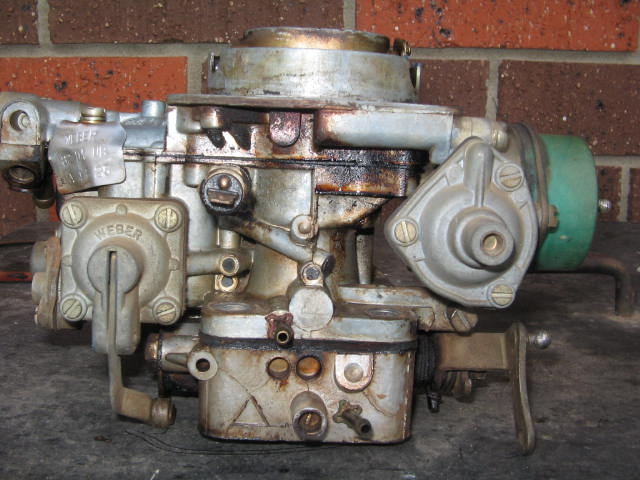

10. Electric automatic choke mechanism. Under the green plastic cover there is a heater element and a bi-metallic spring. +12 Volts is applied to the threaded stud in the centre when the ignition is on. The heater element heats up and in time, causes the bi-metallic spring to rotate the choke shaft, causing the choke to open. Loosening the three screws allows the cover to rotate, to adjust the choke to the correct fully open position after warm-up.

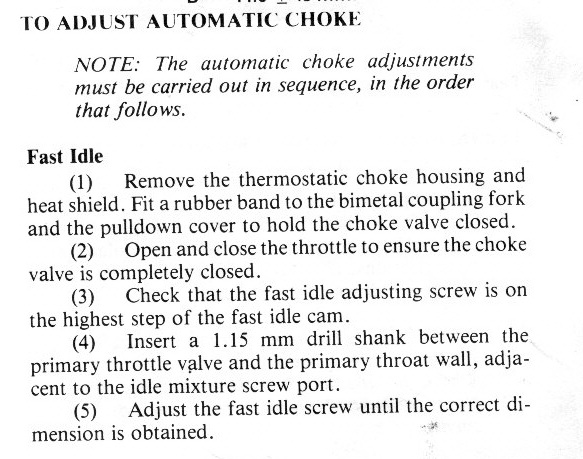

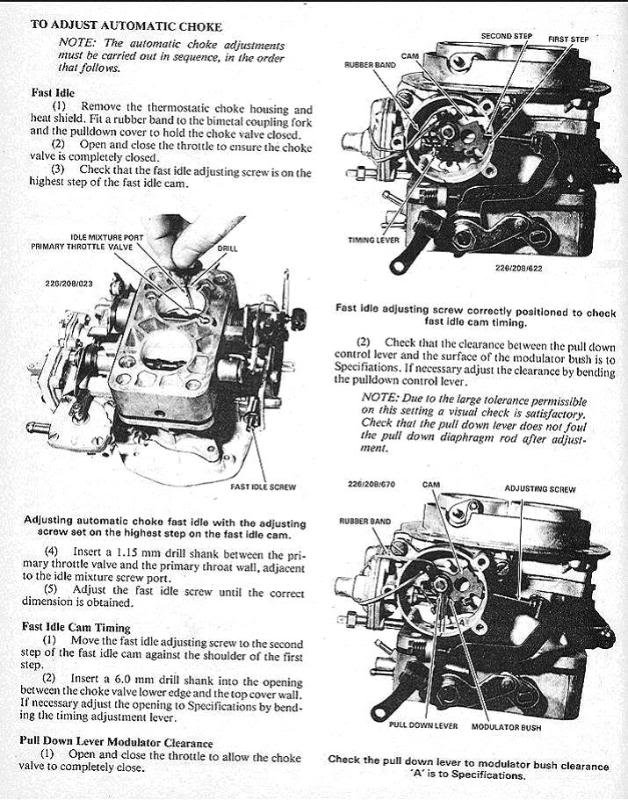

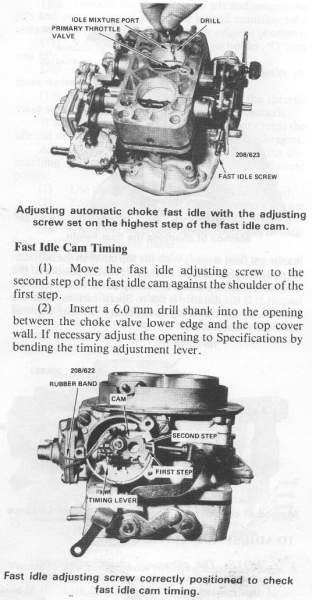

11. Fast idle screw. Adjusts the fast idle speed. Operates whenever the choke is partially closed. There are several steps of fast idle due to the operation of a stepped cam inside the choke mechanism. Adjustment should be made for fast idle on the first step after a cold start. Do not use this screw to adjust the normal idle speed.

12. Choke pull-off diaphragm. Cracks the choke open slightly as soon as the engine starts. Under the small brass plug at the centre there is a grub screw that adjusts how much the choke is cracked open.

13. Accelerator pump. Pumps fuel into the air stream, via the accelerator pump accumulator, during hard acceleration.

14. Idle speed screw. Adjusts the idle speed. To be adjusted only after the engine has reached operating temperature, and the choke is fully open.

15. Vacuum advance connection. Connects to the distributor vacuum advance diaphragm.

16. Idle mixture screw. Adjusts the idle fuel/air mixture.

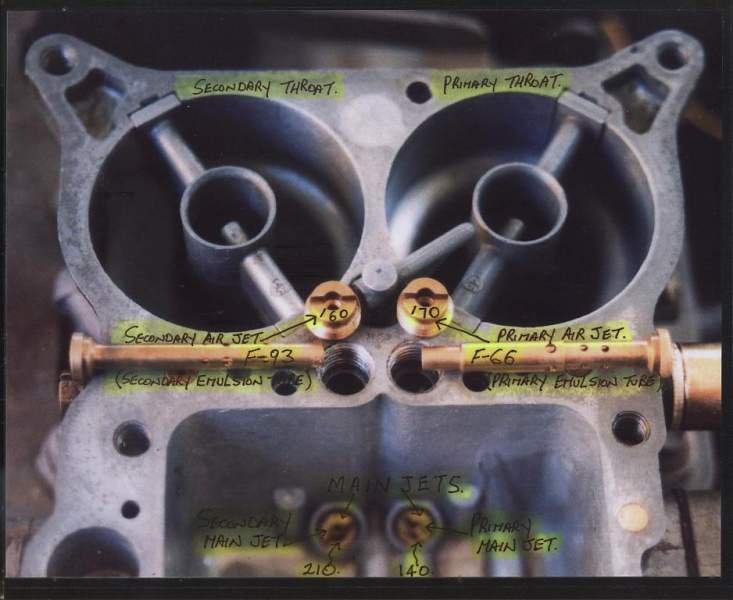

jet sizes.jpg



Stock jetting for 4.1l Crossflow Weber 34adm carburettor-



Primary Idle: 70

Secondary Idle: 60

Primary Fuel: 140

Secondary Fuel: 210

Primary Air: 170

Secondary Air: 160







The following jetting, apparently gives excellent throttle response, very smooth idling and excellent pickup on secondaries.
For a stock 3.3l Crossflow Motor.



Primary Idle: 75 (70 factory fitment)
Secondary Idle: 65 (60 factory fitment)
Primary Fuel: 140 (135 factory fitment?)
Secondary Fuel: 220
Primary Air: 160 (160 factory fitment)
Secondary Air: 180 (160 factory fitment)












































There are five springs in total fitted in this carb. By process of elimination you can work out several of them but some are interchangable and if fitted incorrectly will cause mixture problems. So keep the springs with their correct counterpart.

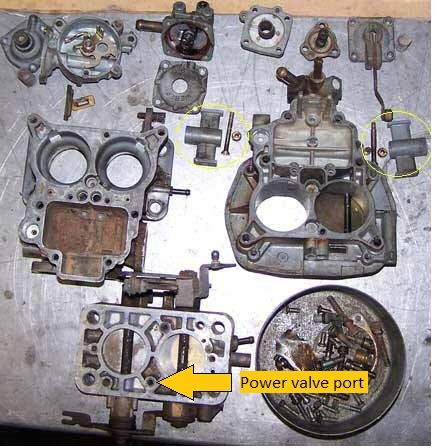

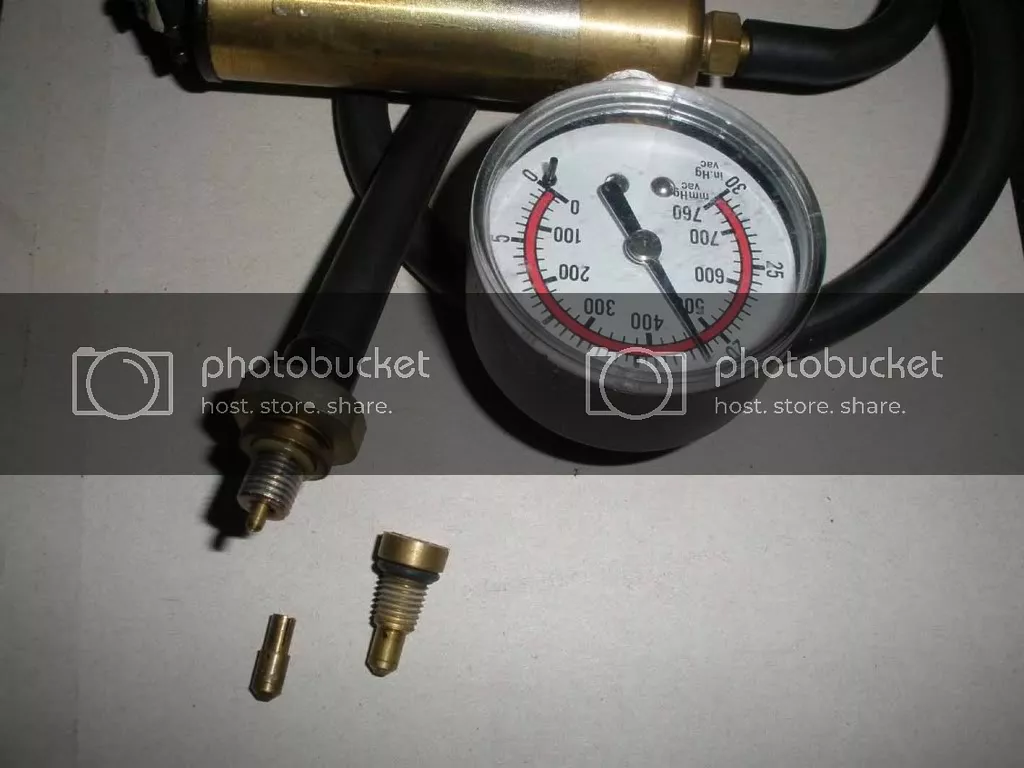

Shown are the vacuum passages to the power valve diaphragm and the boost accelerator pump. When vacuum drops to a pre-determined level the power valve diaphragm is pushed into the power jet which opens the ball to allow more fuel into the main circuit. Also the loss of vacuum applies an extra amount of fuel to the accelerator pump circuit over and above what the accelerator pump diaphragm will deliver. This will usually occur when the second barrel is opened suddenly. The different spring length & tension will operate these devices at differing vacuum settings.

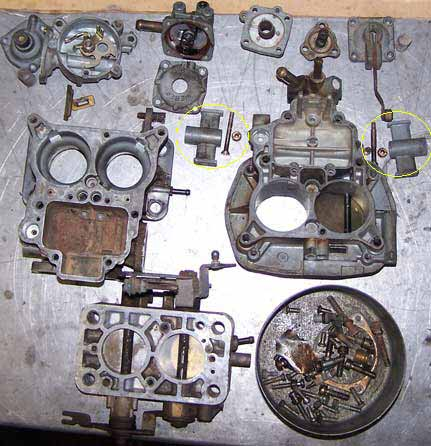

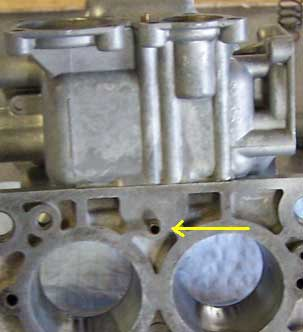

The vacuum to the power valve & accelerator pump boost diaphragms is supplied through this tube. The vacuum port continues down through to the base of the carb between the primary and secondary bores. The tube also acts as a location dowel. It is long enough to pass through the thick gasket and into the base. Now what can happen is that if you don't line up the dowel perfectly to the base and you attempt to tighten the base screws then the tube can be pushed further into its bore in the body of the carb. The end result is a blocked vacuum passage. This will result in a rich cruise mixer and a hesitation when the second barrel opens suddenly. To check that the passage is unobstructed, place you mouth on the tube and suck or attach a tight hose and suck on it. It should feel easy to suck through. If not then this is what needs to be done.








Remove the tube and the easiest way to do this is to stick a drill into the tube, then use a small pair of vice grips to grip it and twist it out. Cut a slot into the tube and then refit it back into the hole. Make sure the slot lines up with the vacuum passage and the tube protrudes through the thick gasket so it can line up with the base. The slot does not have to be as long as in the photo. If the tube is fitted at the correct depth, this mod would be unnecessary.









https://www.ebay.ca/itm/FORD-FALCON-WEBER-34-ADM-SERVICE-KIT/264174927546?epid=2102017418&hash=item3d820d7eba:g:kYYAAOSwFV9X1ukr



https://www.ebay.com.au/itm/WEBER-34-ADM-CARBURETTOR-SERVICE-KIT-FORD-FALCON-3-3-4-1/201732658915?hash=item2ef83416e3:g:RbgAAOSwa~BYPWPJ



https://www.meat-doria.com/en/product_meat/W552.1

https://www.meat-doria.com/en/product_meat/W552






Share this post


Link to post
Share on other sites

wouldn't mind seeing how the power valve itself comes out, one of mine here is stuck on.. making the engine flood. pretty sure it's pressed in and can't be removed(not without butchery)
