xm-221

Paint Codes

Recommended Posts

Going through my computer tonight I found a .pdf file that has scans of all the paints codes from the XD,XE spare parts manual that was used at Ford when ordering a new car.

I've copied these codes straight from the book and decided to post them up in here.

I know it's not a comprehensive list of all the colours but it's a start.

I will add to this list as soon as I hunt down the other codes (it's late and I cbf'd).



XD Paint Codes to 2/81

B = Arctic Blue
C = Midnight
D = Mint Glaze
E = Galaxy Blue
F = Blaze Blue
G = Marigold
H = Onyx Black
J = Cinnamon
K = Monza Red
L = Hermitage
Q = Nutmeg
R = Raw Orange
T = Wedgewood
U = Emerald
V = Oxford Blue
X = Lemon Lime
Z = Burnt Orange
2 = Sahara Tan
3 = Gold Dust
4 = Silver Grey
5 = Classic Grey
6 = Dark Burgundy
7 = Ghost Gum
8 = Sandstone
9 = Sno White

XD Paint Codes from 2/81

E = Galaxy Blue
G = Oxford Blue
K = Monza Red
L = Hermitage
M = Martian Green
N = Satellite Brown
O = Polaris Blue
P = Moon Dust
S = Cosmic Gold
W = Venus Orange
X = Sahara Tan
Y = Lightening Yellow
4 = Silver Grey
6 = Dark Burgundy
9 = Sno White

ZJ Colour Codes

C = Midnight
E = Galaxy Blue
H = Onyx Black
J = Cinnamon
L = Hermitage
M = Martian Green
N = Satellite Brown
O = Polaris Blue
P = Moon Dust
Q = Nutmeg
S = Cosmic Blue
T = Wedgewood
U = Emerald
3 = Gold Dust
4 = Silver Grey
5 = Classic Grey
6 = Dark Burgundy
7 = Ghost Gum
9 = Sno White

ZJ Sportsman

M = Brown Satin over Ghost Gum
N = Midnight over Sno White
P = Onyx Black over Silver Grey
S = Ghost Gum over Brown Satin
W = Wedgewood over Midnight
D = Ghost Gum over Cinnamon
F = Dark burgandy over Ghost Gum
X = Galaxy Blue over Silver Grey

FC Colour Codes

C = Midnight
E = Galaxy Blue
H = Onyx Black
J = Cinnamon
K = Champagne
L = Hermitage
M = Martian Green
N = Satellite Brown
O = Polaris Blue
P = Moon Dust
Q = Nutmeg
S = Cosmic Gold
T = Wedgewood
U = Emerald
3 = Gold Dust
4 = Silver Grey
5 = Classic Grey
6 = Dark Burgundy
9 = Sno White

XE, ZK, FD Colour Codes

A = Ice Blue
B = Saffron
C = Baham Beige
E = French Blue
F = Mocha Brown
H = Burnt Copper
J = Caramel
K = Monza Red
L = Hermitage
M = Vanilla
N = Satellite Brown
O = Polaris Blue
P = Citrus Yellow
Q = Marine Blue
R = Ivory Cream
T = Chestnut
U = Platinum
V = Charcoal
X = Atlantic Blue
Z = Stark White
2 = Green jade
3 = Autumn Gold
4 = Silver Grey
5 = Gold Mist
6 = Dark Burgundy
7 = Sovereign
8 = Copper Bronze
9 = Sno White

ZK Sportsman

S = Dark Burgandy over Champagne
W = Galaxy Blue over Wedgewood
Y = Charcoal over Silver Grey

ZK Classic

C = Ice Blue over Silver Grey
J = Green Jade over Silver Grey
T = Charcoal over Silver Grey

XE Eclipse

D = Atlantic Blue over Silver Grey
G = Ice Blue over Sno White
S = Sovereign over Sno White
Y = Vanilla over Sno White

XE Ghia

U = Atlantic Blue over Ice Blue
W = Hermitage over Silver Grey
6 = Burnt Copper over Silver Grey


Share this post


Link to post
Share on other sites

XF



CODE - COLOUR - PAINT N

A ICE BLUE – MET T3A

B PLATINUM U3A

C BAHAMA BEIGE HVA

E GOLD MIST Q4A

K MONZA RED FNA

M VANILLA MBA

N DEEP AQUA V3A

P CITRUS YELLOW CLA

Q REGENCY G7A

R CRYSTAL MINT Z5A

R LE MANS RED JNA

T SABLE T4A

V CHARCOAL – MET Z2A

W OLYMPIC GOLD – MET S4A

X ATLANTIC GOLD – MET S4A

Z TARK WHITE LBA

3 AUTUMN GOLD – MET P4A

4 SILVER GREY W2A

9 SNO WHITE ABA

11 ARGENT U2D

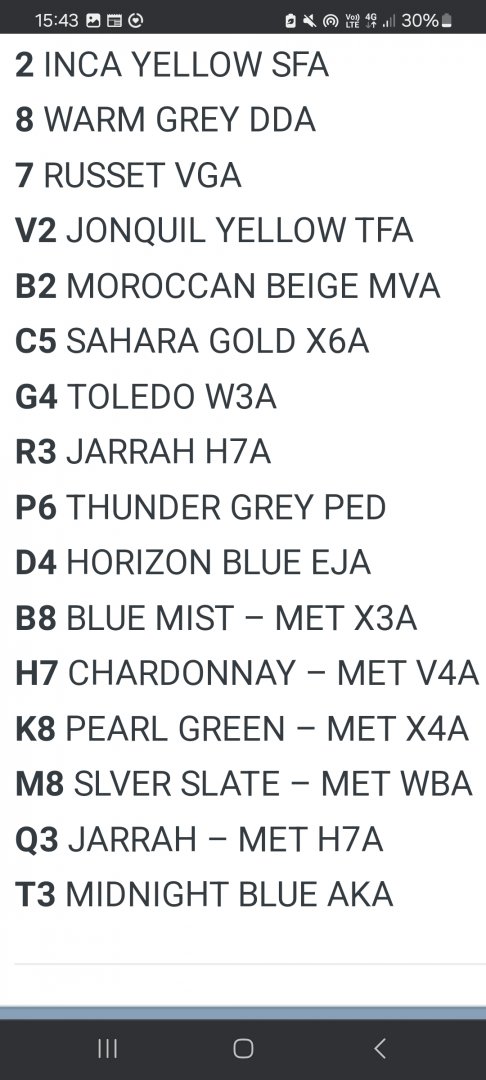

2 INCA YELLOW SFA

8 WARM GREY DDA

7 RUSSET VGA

V2 JONQUIL YELLOW TFA

B2 MOROCCAN BEIGE MVA

C5 SAHARA GOLD X6A

G4 TOLEDO W3A

R3 JARRAH H7A

P6 THUNDER GREY PED

D4 HORIZON BLUE EJA

B8 BLUE MIST – MET X3A

H7 CHARDONNAY – MET V4A

K8 PEARL GREEN – MET X4A

M8 SLVER SLATE – MET WBA

Q3 JARRAH – MET H7A

T3 MIDNIGHT BLUE AKA

Share this post


Link to post
Share on other sites

XD - XE, sorry glenn but yours was missing a few



CODE COLOUR PAINT NO.

A ICE BLUE – MET T3A

B PLATINUM U3A

C BAHAMA BEIGE HVA

E GOLD MIST Q4A

K MONZA RED FNA

M VANILLA MBA

N DEEP AQUA V3A

P CITRUS YELLOW CLA

Q REGENCY G7A

R CRYSTAL MINT Z5A

R LE MANS RED JNA

T SABLE T4A

V CHARCOAL – MET Z2A

W OLYMPIC GOLD – MET S4A

X ATLANTIC GOLD – MET S4A

Z STARK WHITE LBA

3 AUTUMN GOLD – MET P4A

4 SILVER GREY W2A

9 SNO WHITE ABA

11 ARGENT U2D

2 INCA YELLOW SFA

8 WARM GREY DDA

7 RUSSET VGA

V2 JONQUIL YELLOW TFA

B2 MOROCCAN BEIGE MVA

C5 SAHARA GOLD X6A

G4 TOLEDO W3A

R3 JARRAH H7A

P6 THUNDER GREY PED

D4 HORIZON BLUE EJA

B8 BLUE MIST – MET X3A

H7 CHARDONNAY – MET V4A

K8 PEARL GREEN – MET X4A

M8 SLVER SLATE – MET WBA

Q3 JARRAH – MET H7A

T3 MIDNIGHT BLUE AKA

Share this post


Link to post
Share on other sites

so my Y0455 is??.. LoL.. buggered of I can find a formula for it!...anyone seen it before?., even the interior Trim code seems hard to find, it's B2

might be a fleet colour, My XE pano (pretty sure it was ex police) had a Y something and was a yellow

Share this post


Link to post
Share on other sites

Well people, letter from Ford says Y045, Corporate Blue, XB colour, extra "5" on the plate was a freebie from Ford but under the rear seat and a couple of other places where the paint looks like new from the factory it appears to have very fine metallic in it.

Share this post


Link to post
Share on other sites
On ‎17‎/‎07‎/‎2017 at 2:03 PM, BGBLOK said:

Well people, letter from Ford says Y045, Corporate Blue, XB colour, extra "5" on the plate was a freebie from Ford but under the rear seat and a couple of other places where the paint looks like new from the factory it appears to have very fine metallic in it.

Well it turns out it is a 1 of 1 car, only one built!..351 4 speed LSD single tramp rod car, company special ordered who wants it!.. full resto needed but very very small amount of rust repair to do!. txt me 0413554616 or email proactms@bigpond.com

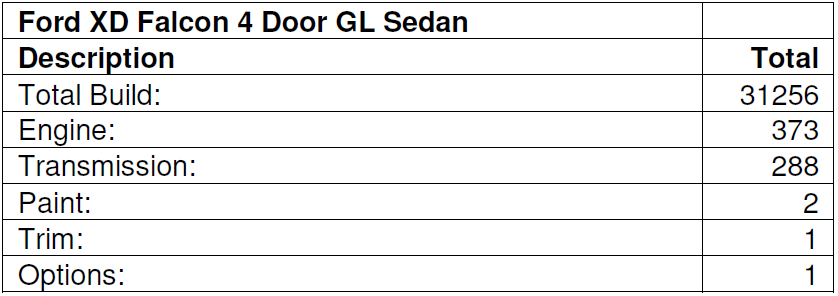

Build stats.PNG

Snip from letter.PNG

Edited by BGBLOK
update

Share this post


Link to post
Share on other sites
11 hours ago, Chiggidy said:

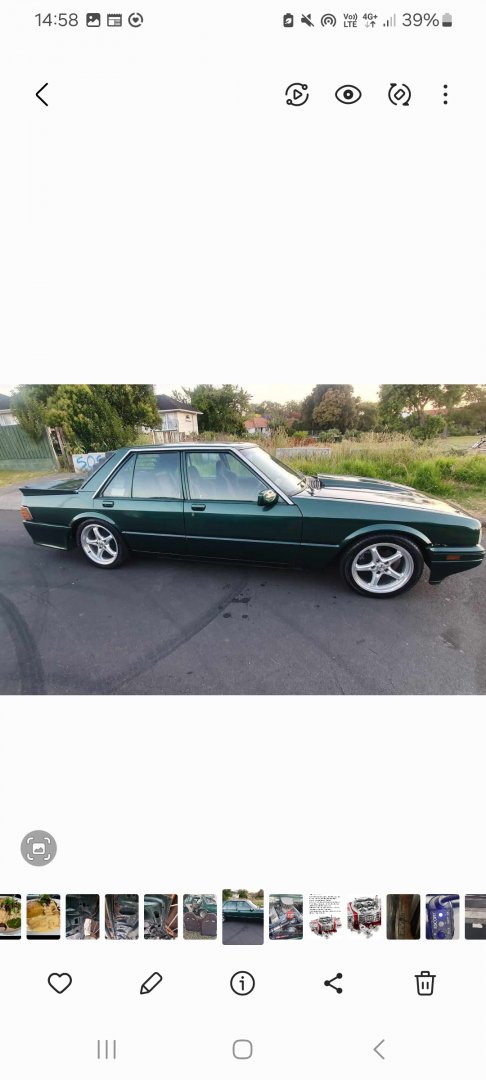

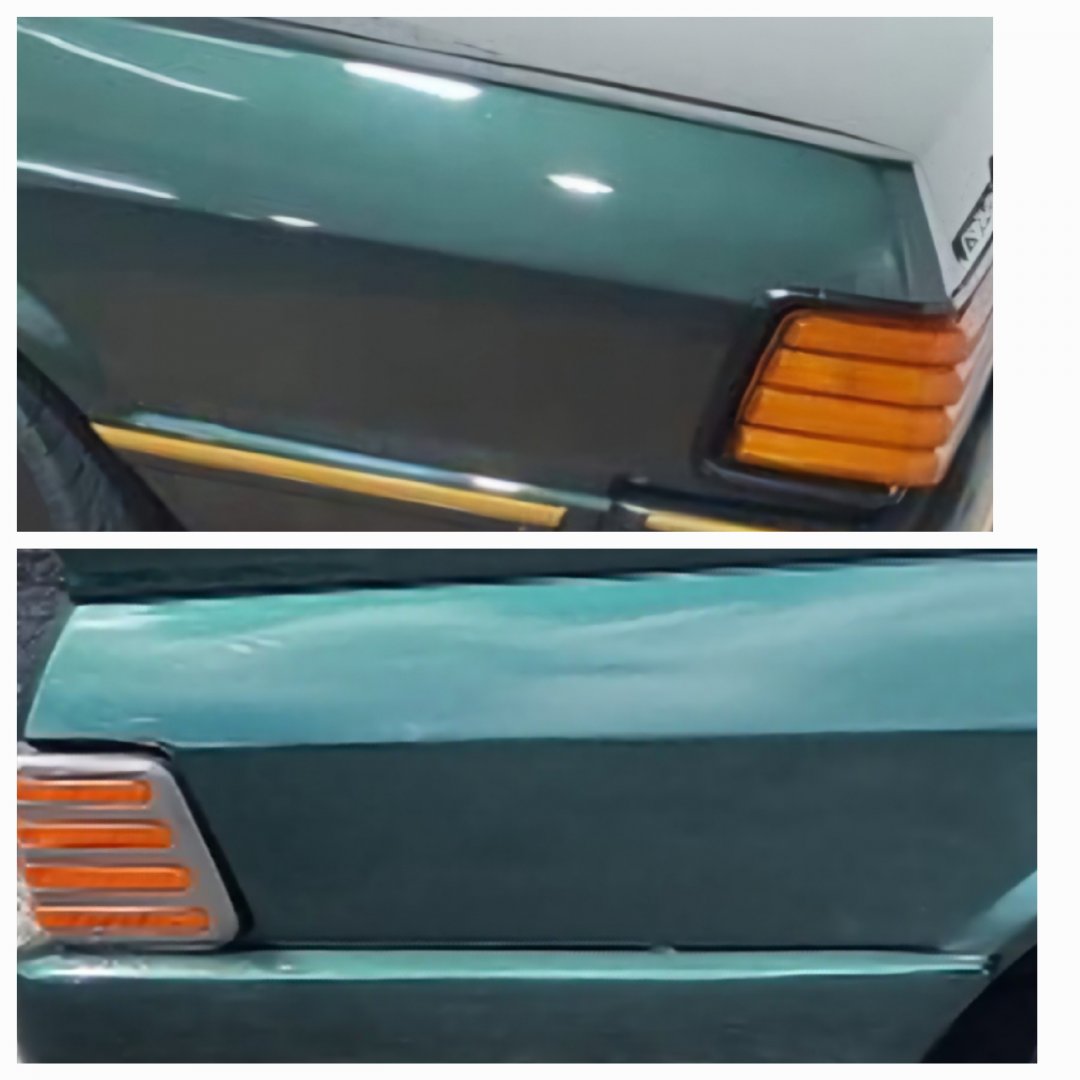

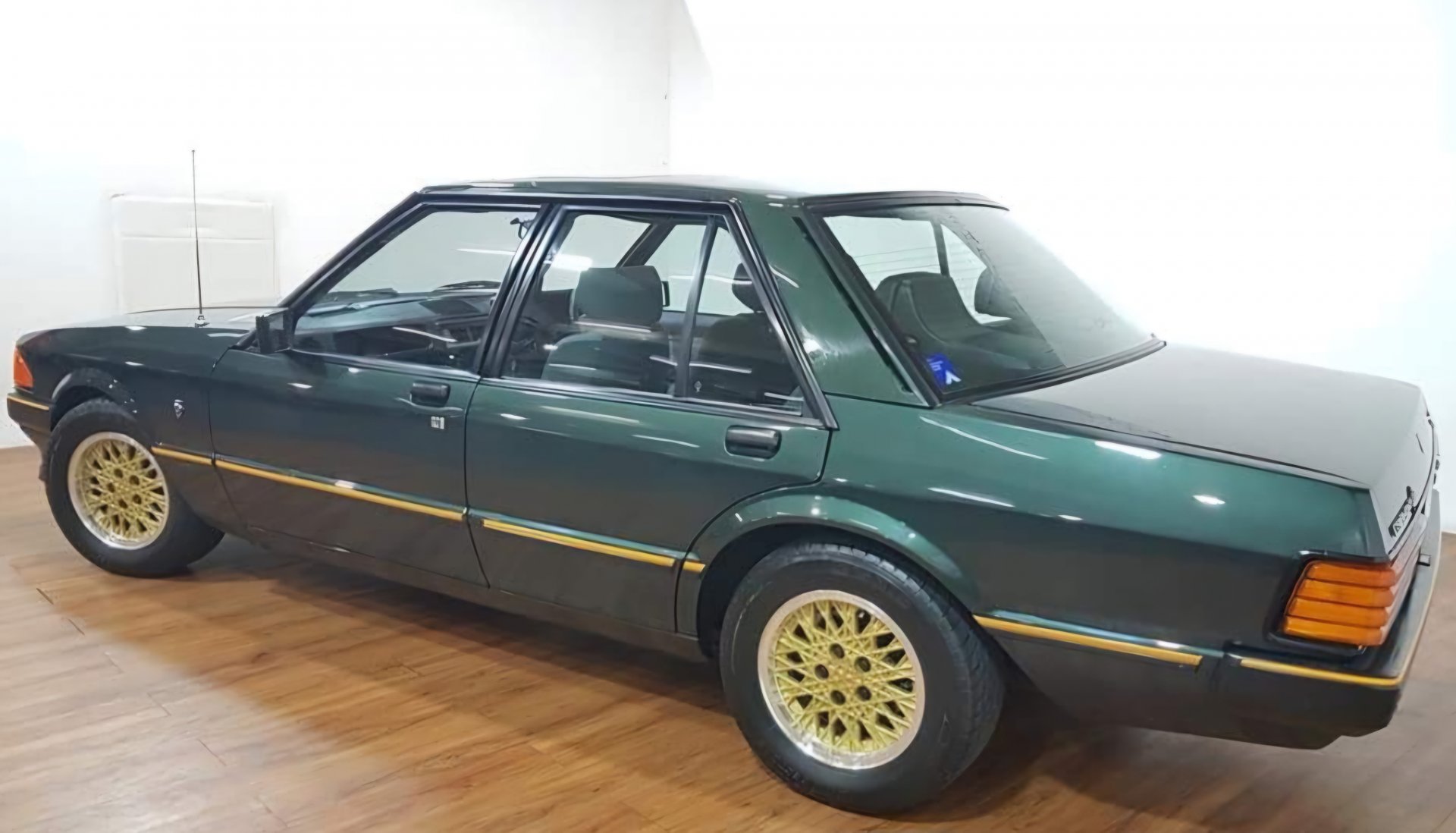

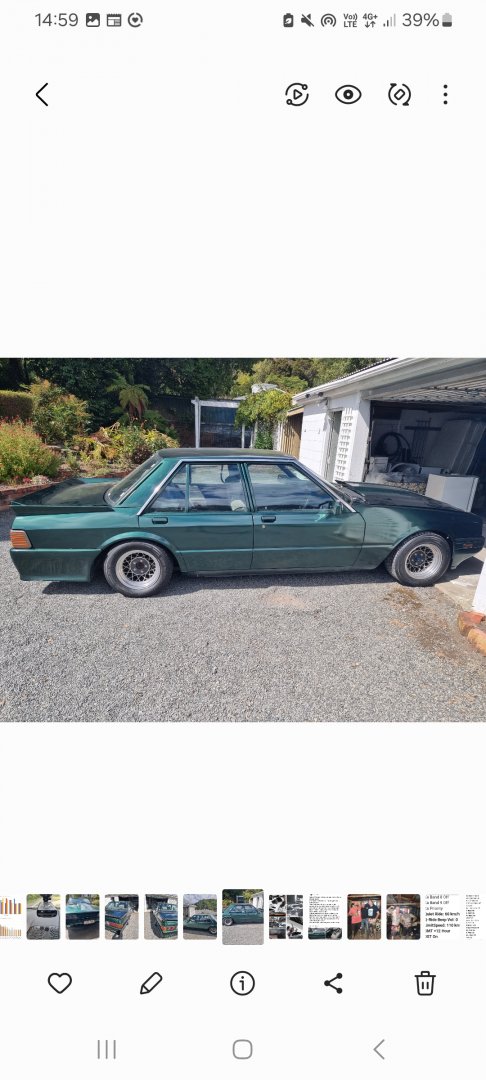

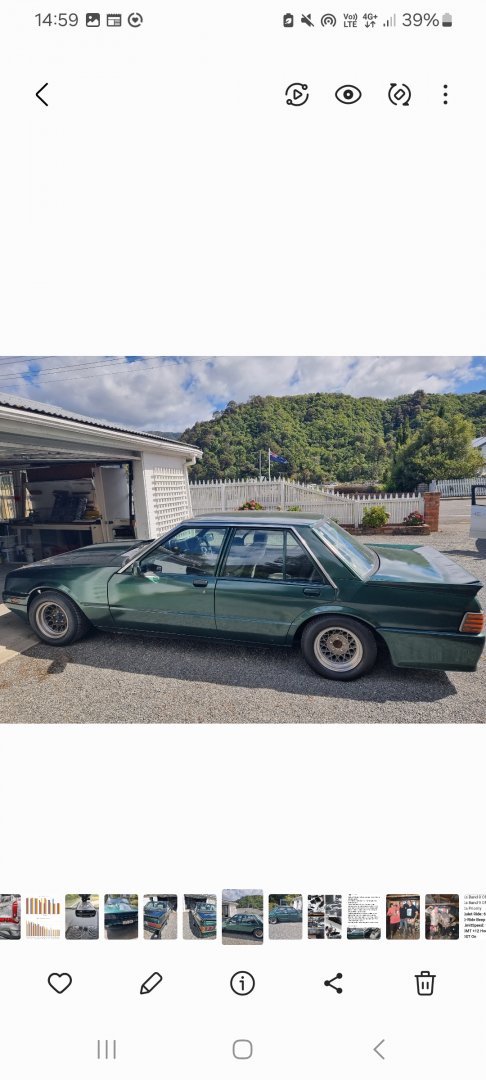

How do I find out? Would anyone know my XFs color from photos?

you could ring 13ford for a verification letter, they'd send you out a build sheet and possibly tell you over the phone.


Share this post


Link to post
Share on other sites

I was actually on the phone ordering the sheet today but I came across this post and forgot to get the color code, spilled the beans a bit on that one, however I did ask her if she knew if there may be some legit original left over paint somewhere, I know it’s a bit of a stupid question but if you don’t ask you’ll never know

Share this post


Link to post
Share on other sites
