jsecond 0 Posted May 26 Hi, I am needing a XD/XE V8 S pak instrument cluster wiring loom, which plugs into the cluster, white circle plugs i think...if anyone could help thanks, or supply wiring diagram to know what each pin on the back of the cluster is for...cheers Share this post Link to post Share on other sites
dvfalcon 397 Posted May 27 the cluster loom is part of the main dash loom, is it for the car or test related purposes. The pin out should be in the manual the only issue is they arent that clear in the manual an copying them blurs even more. will check the manual and get back to you DaLE 1 deankxf reacted to this Share this post Link to post Share on other sites

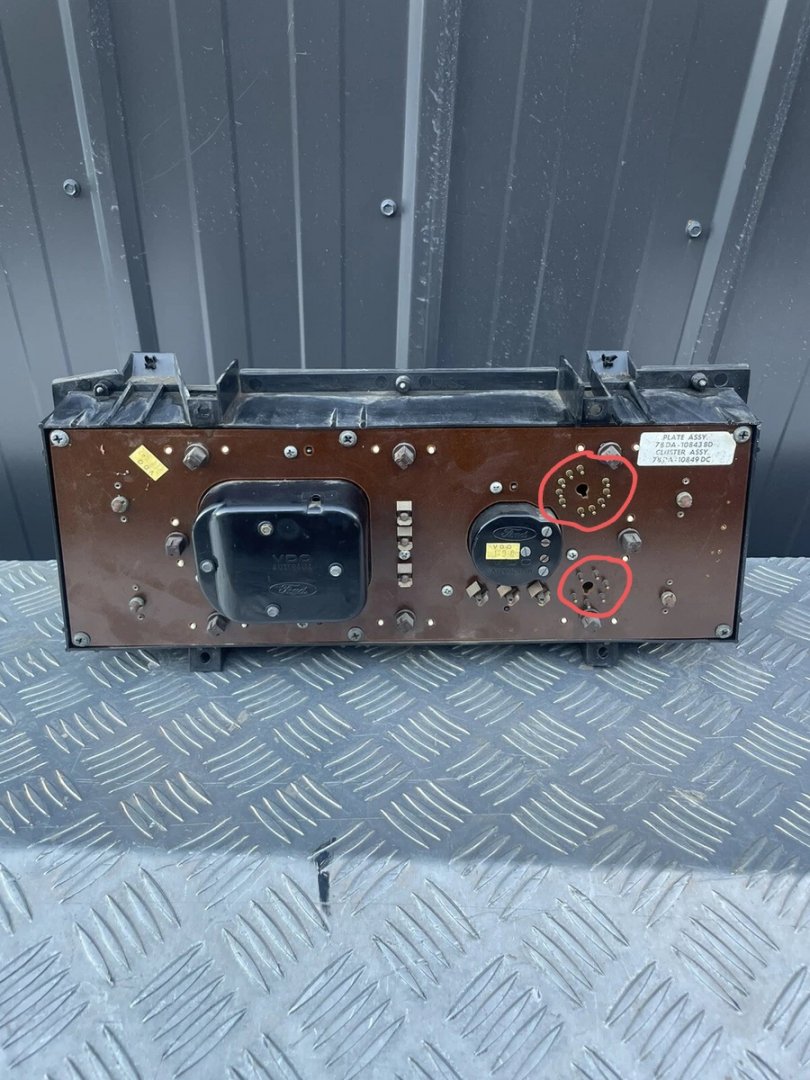

deankxf 21,673 Posted May 27 19 hours ago, jsecond said: Hi, I am needing a XD/XE V8 S pak instrument cluster wiring loom, which plugs into the cluster, white circle plugs i think...if anyone could help thanks, or supply wiring diagram to know what each pin on the back of the cluster is for...cheers 6cyl XD XE will be same V8 cluster is same other than the tacho calibration (adjustable also, can be changed to either with adjusting a trim pot and calibrated correctly) even the GL without tacho will be mostly the same (i had one where the tacho wire wasn't in the XE we had, i just added it to the plug)you can decode nearly all of the wires if need be by following the tracks on the circuit board (will need to undo the 6 screws on the back to release it from the housing. what car is it going into? Share this post Link to post Share on other sites
dvfalcon 397 Posted May 27 Wiring diagram hard to read in manual may not pick up photo. If you need me to confirm wire colour let me know what you need to knowSent from my iPhone using Tapatalk 1 deankxf reacted to this Share this post Link to post Share on other sites
bear351c 10,668 Posted May 31 Wow. Circuit board looks like its dated 1978.! Very first XD models. 3.3 litres of bone jarring power. Share this post Link to post Share on other sites
